Powerbox Core

PowerBox-Systems manufactures high-quality power supply equipment, and has now been working for more than a year on its own independent radio control system. On the face of it we may seem a little tardy in introducing a new 2.4 GHz RC system, but upon closer inspection it is precisely this belated entry which gives us one unique advantage: During the development of this new platform we have not been obliged to make any compromises with regard to compatibility with other systems, and this has enabled us to create new standards in the sphere of 2.4 GHz RC equipment. We placed top priority on the CORE’s security and functional stability. Radio transmission and power supply The radio link employs the thoroughly tested frequency-hopping process developed by the Weatronic company. This process is already renowned for its outstanding interference rejection and long range. The CORE’s radio link features integral redundancy, which is monitored by the receiver. For example, if a fault should develop in a transmitting circuit, then the receiver immediately warns the user of this via telemetry. PowerBox is famous for its redundant power supplies, and the CORE’s power system naturally incorporates this: two separate Li-Ion battery units are used, each rated at 3400 mAh / 7.2 V, and the entire power regulation circuit is also duplicated - a feature currently available only in the CORE. The transmitter’s operating time is around ten hours, measured with the screen set to maximum brightness and the system at maximum load. Telemetry We believe that telemetry will increase very greatly in importance over the next few years, and the demands made upon it will intensify. For this reason we have invested tremendous effort in developing this aspect of the system. At present there are a few manufacturers of telemetry sensors, and the devices are already in use by many modellers. However, current transmitters’ telemetry systems are either unable to handle a large number of sensor values, or transmission speed is reduced markedly as the number of connected sensors rises. This is the aspect where the strength of the CORE system is most evident: Telemetry handling and transmission has been the subject of a comprehensive redesign process, with the result that up to 240 sensors can be connected to the P²-BUS, each generating 32 data values, and the system is capable of transmitting up to 800 x 16-bit values per second. For the future this level of performance opens up entirely new possibilities, such as real-time servo monitoring in the model. Our P²-BUS telemetry interface is accessible to third-party manufacturers, which means that customers are not obliged to switch to new sensors for their models; a software update of the sensor system would be sufficient. The configuration and parameter setting procedure for the telemetry system as a whole is conveniently carried out from the transmitter using the radio link. Linux with smartphone features The basis of the CORE transmitter is a modern, high-performance Linux PC, which is controlled entirely using the integral touch-screen. The software’s basic look and feel are identical to the typical smartphone. An intuitive user interface provides fast access to all associated settings, with the result that models can be programmed with the minimum of input effort. Every feature of the user interface has been programmed using Toolkit Qt. Nowadays this development environment is virtually the standard in the sphere of Embedded GUIs, and is employed by many renowned manufacturers. The transmitter screen is manufactured to the specification of PowerBox-Systems, and is very clearly legible even in bright sunshine. A light touch on the surface of the capacitive touchpad is all that is required. The smartkeys (quick-select buttons) located at the bottom edge of the screen provide instant access to important functions such as Servo Monitor and Screen Lock. Internal data communication is implemented via the CAN-BUS. This proven bus system is absolutely ideal for our use, and has already been employed successfully in the car and aviation industries for several decades. Clear evidence of our system’s high-speed processing is found in the Servo Monitor: when the transmitter controls are moved, the screen responds totally in real time! As standard the Linux computer features OpenGL support, which provides almost unlimited scope for graphics, even in the future. Features In terms of physical controls the transmitter is fully expanded as standard - with the exception of the stick-switches. If these are required, they can be retro-fitted by the customer himself or by our Service Department; the transmitter’s hardware provides the appropriate sockets. The standard controls are two primary stick units machined from the solid, exploiting Hall sensors with 16-bit resolution and a further four linear controls. These are also based on totally wear-free Hall sensor technology, and each features twin ballraces. The transmitter is equipped with eight toggle switches, of which the bottom pair are two-position types; all the others are three-position switches. However, this arrangement can be altered at any time by the user; for example, it would be possible to fit latching switches, or switches with different-length toggles. If the customer so desires, potentiometers could even be fitted. The inputs for the transmitter controls are designed to offer maximum flexibility. Another new feature in the overall design is the pair of momentary switches to left and right of the primary sticks: these are the perfect choice for controlling wheel brakes, electric starters or smoke pumps. Look and feel When you pick up and hold the CORE transmitter, you immediately feel at home with it: all the switches are laid out in the pattern familiar from other High-End systems. Our aim has always been to give pilots a professional “tool” which they can immediately use to the full. The Alcantara leather hand-hold facings are immediate evidence that this is a very high-grade device. And just as important: the transmitter simply fits perfectly in the hands. High-speed signal transmission The CORE provides 26 channels, each with 4096-bit resolution. Despite this, the control data are transmitted using a 10 ms frame rate with zero delay. All channels have full resolution, and there are no limitations to the frame rate. Further highlights Special features of the transmitter include integral GPS, a 9-axis motion sensor, USB and a WLAN socket. Amongst other uses, the latter is employed for updating the software for the entire system. Receivers can be updated very conveniently via the radio link, i.e. it is not even necessary to remove them from the model.
(image for) Powerbox Core iSAT Gyro

Powerbox Core iSAT Gyro

Product description The iGyro SAT has been developed specifically to complement the new range of PowerBox PBR receivers by providing the modeller...
(image for) Pioneer 4100 14ch HV Button Switch

Pioneer 4100 14ch HV Button Switch

Product description The PowerBox Pioneer is the latest development of a 14-channel power supply unit without voltage regulation, designed for HV...
(image for) Core Tray Tx

Core Tray Tx

Tray version. Inc Neck Strap. Case. Please state mode and colour. Available now 2019 All radios built to order
(image for) Core Tx Black or Silver. Available to order

Core Tx Black or Silver. Available to order

PowerBox-Systems manufactures high-quality power supply equipment, and has now been working for more than a year on its own independent radio control...
(image for) Core upright Tx case

Core upright Tx case

Spare case as supplied with radio. Can be adapted to carry tools etc To order
(image for) Instruction manual Core

Instruction manual Core

www.powerbox-systems.com/uploads/tx_pbsdocuments/8101_PowerBox_CORE_en_01.pdf Cut and paste this for the manual
(image for) PBR 26-D Bus Type Rx

PBR 26-D Bus Type Rx

PBR-26D This is a satellite receiver featuring two redundant receiver circuits. The unit features a P²-BUS interface for servo and telemetry data,...
(image for) PBR- 7S Channel Rx

PBR- 7S Channel Rx

Technical Data Operating voltage 4.0V - 9.0V Supported RC systems CORE Channels 26 Through PB unit Servo sockets 7 (8) PWM Servo signal resolution...

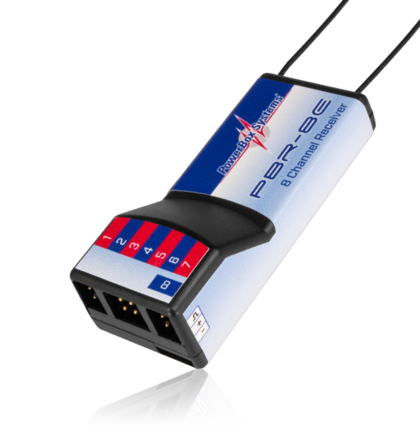

(image for) PBR-8E


PBR-8E This is a eight-channel receiver with two redundant receiver circuits. The unit features 8 PWM servo outputs and telemetry data for battery...
(image for) PBR-9D 9 Channel Rx

PBR-9D 9 Channel Rx

Operating voltage 4.0V - 9.0V Supported RC systems CORE Channels 26 Bus Servo sockets 9 or (10) PWM Servo signal resolution 4096 Bit Integral gyro...
(image for) Powerbox Core PBR 8E Rx

Powerbox Core PBR 8E Rx

PBR-8E This is a eight-channel receiver with two redundant receiver circuits. The unit features 8 PWM servo outputs and telemetry data for battery...
(image for) Powerbox Core PBR-5S

Powerbox Core PBR-5S

PBR-5S This is a five-channel receiver with a single receiver circuit and an integral Chip aerial. The unit features a P²-BUS interface for servo...
(image for) Powerbox Core radio (Black finish)

Powerbox Core radio (Black finish)

All Core Tx's are to order. Switch layout etc is done at the factory Look and feel When you pick up and hold the CORE transmitter, you immediately...
(image for) Powerbox Core radio in use

Powerbox Core radio in use

Another of many of our customers using Core.
(image for) PowerBox iGyro 3Xtra

PowerBox iGyro 3Xtra

Extremely accurate triple-axis MEMS sensor New regulatory algorithm for fixed-wing model aircraft with improved performance Optional GPS-controlled...
(image for) See the complete range items under Powerbox section

See the complete range items under Powerbox section

See our Powerbox section. We get multiple deliveries each week from Powerbox Systems, work closely with the company and actually fly the products...
